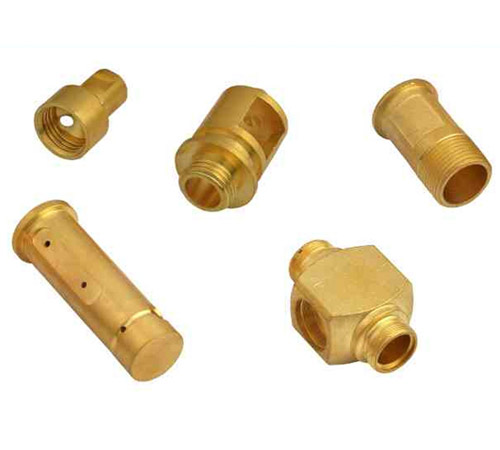

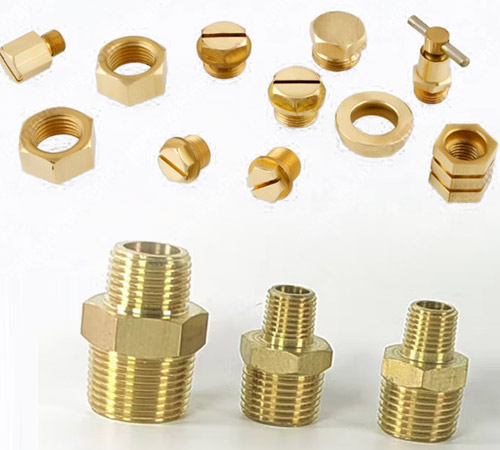

Brass Pump Parts
At Shrinathji Enterprise, we specialize in the manufacturing of high-quality Brass Pump Parts that are essential for efficient and long-lasting pump operation. Our components are widely used in domestic, agricultural, industrial, and commercial pump assemblies due to their corrosion resistance, dimensional accuracy, and mechanical strength.
We offer a comprehensive range of brass pump components manufactured using top-grade alloys like CZ121, CW617N, and IS 319 Grade Brass. These parts are precisely turned, milled, and inspected to meet the critical tolerances and operating requirements of pump manufacturers and OEMs.
| Parameter | Specification Range / Details |
|---|---|
| Material Grades | CZ121, CW617N, IS 319 Free-Cutting Brass |
| Outer Diameter (OD) | 15 mm to 150 mm (customized on request) |
| Wall Thickness | 1 mm to 8 mm (depending on application) |
| Length/Height | Up to 200 mm (varies per part type) |
| Thread Types | Metric, BSP, NPT, or as per client specification |
| Surface Finish | Machined / Polished / Nickel-Plated (optional) |
| Tolerance | ±0.03 mm to ±0.05 mm (CNC/VMC precision) |
| Applications | Submersible, centrifugal, and lubrication pumps |
| Type of Parts | Impellers, Bushes, Gland Nuts, Adapters, Sleeves |
| Production Capability | Small to high-volume batches (OEM supported) |
| Testing Conducted | Dimensional, Pressure, Hardness, Thread checks |
| Customization | Available as per drawing/sample/spec sheet |
