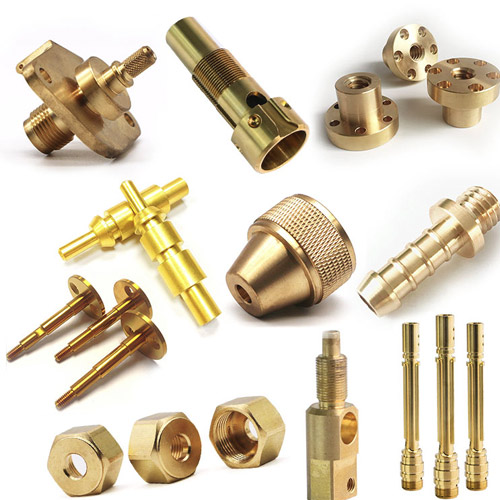

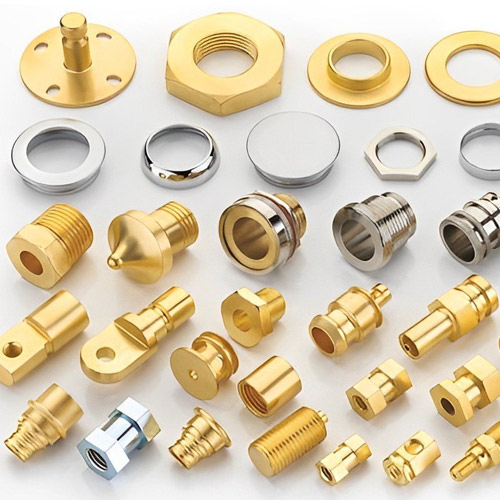

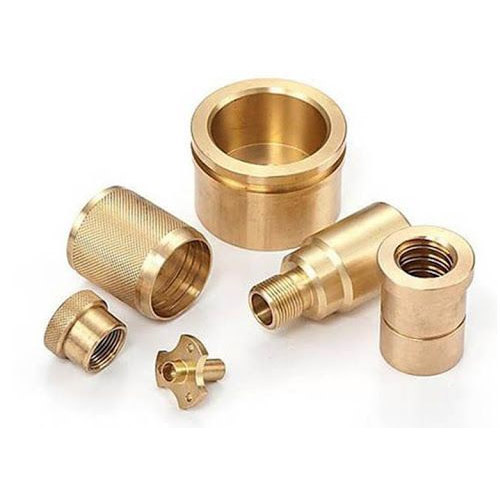

Brass Precision Components
Shrinathji Enterprise is a leading manufacturer of high-quality Brass Precision Components tailored to meet the demanding requirements of industries where accuracy, consistency, and durability are critical. Our components are widely used in electrical, automotive, instrumentation, sanitary, and plastic molding applications across India and global markets.
Every component is precision-machined using advanced CNC and VMC technology, ensuring tight tolerances, perfect fitment, and long-lasting reliability.
Our brass precision parts are made from virgin-grade brass alloys such as IS 319, CZ121, CW614N, and CW617N, with custom options available to meet unique performance needs.
| Parameter | Specification Range / Details |
|---|---|
| Material Grades | IS 319, CW614N, CZ121, CW617N, Free-Cutting Brass |
| Component Types | Inserts, Bushes, Terminals, Pins, Spacers, Custom Parts |
| Manufacturing Process | CNC Turning, VMC Milling, Threading, Slotting |
| Outer Diameter (OD) | 2 mm to 100 mm |
| Length | Up to 200 mm (customizable) |
| Thread Standards | Metric, BSP, BA, NPT, UNF, UNC, Custom |
| Tolerance | Up to ±0.02 mm (based on part requirements) |
| Finish Options | Machined, Polished, Nickel Plated, Chrome, Tin |
| Knurling Types | Straight, Diamond, Spiral (Optional) |
| Slotting/Drilling | As per design – cross holes, slots, bores |
| Customization | Fully customizable per 2D/3D drawing or sample |
| Inspection Equipment | Vernier, Micrometer, Thread Gauges, Profile Tester |
| Batch Size | From Prototypes to High-Volume Production |
